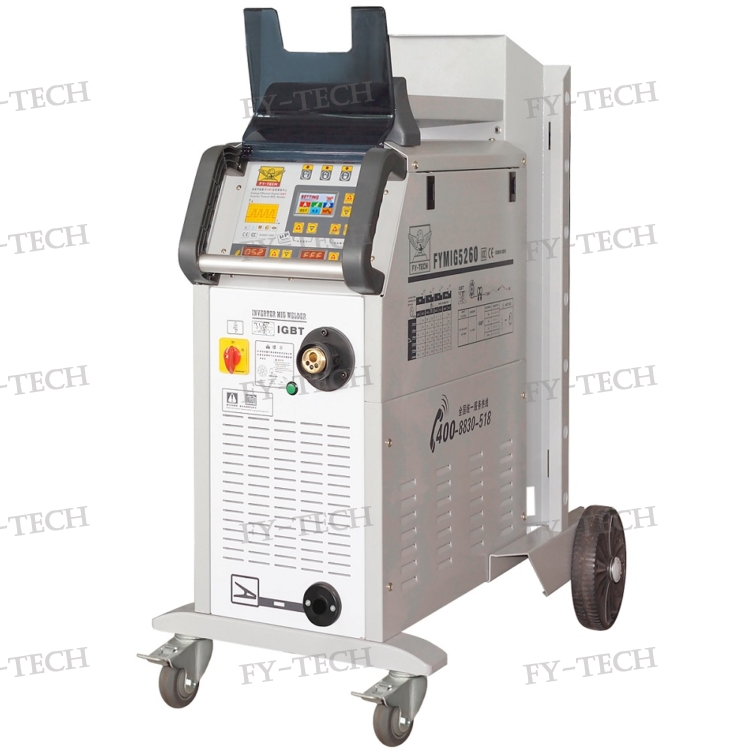

Energy-Efficient IGBT Inverter Double Pulse MIG Welder for Aluminium – FYMIG5260
ر.ع.350.00
Overview:
A high-performance, energy-efficient MIG welder designed for professional use on aluminium, steel, stainless steel, copper, and nickel. The FYMIG5260 combines advanced DSP control with IGBT inverter double-pulse technology for precision, smooth arc control, and reduced spatter.
Key Features:
Smart LCD Control Panel: Multifunctional color display with one-button intelligent setup. Automatically stores equipment info and welding modes for different materials.
Advanced DSP & IGBT Technology: Uses world-class power modules and soft-switching control for stable, efficient operation and superior weld quality.
High Efficiency & Power Factor: ≥90% efficiency and ≥0.95 power factor ensure energy savings and consistent output.
Ergonomic Design: Equipped with a fender panel for gas cylinder mounting, protective cover, and premium welding gun with custom holder.
Precision & Low Deformation: Double-pulse control minimizes heat input, spatter, and deformation — ideal for automotive bodywork and thin materials.
Technical Specifications:
Parameter Specification
Input Voltage 380V / 220V
Rated Input Power 8 KVA
Rated Input Current 12 A
Output Current Range 35A / 15.7V – 260A / 26V
Duty Cycle 200A @ 100% / 260A @ 65%
No-Load Voltage 50 V
Efficiency ≥90%
Power Factor ≥0.95
Insulation Grade F
Wire Diameter (Steel) Ø0.6 – 1.2 mm
Wire Diameter (Aluminium) Ø0.8 – 1.2 mm
Wire Diameter (Copper Alloy) Ø0.6 – 1.2 mm
Wire Feeder Four-Roll Drive
Dimensions (L×W×H) 93 × 35 × 83 cm
Weight 88 kg
In stock
Overview:
A high-performance, energy-efficient MIG welder designed for professional use on aluminium, steel, stainless steel, copper, and nickel. The FYMIG5260 combines advanced DSP control with IGBT inverter double-pulse technology for precision, smooth arc control, and reduced spatter.
Key Features:
Smart LCD Control Panel: Multifunctional color display with one-button intelligent setup. Automatically stores equipment info and welding modes for different materials.
Advanced DSP & IGBT Technology: Uses world-class power modules and soft-switching control for stable, efficient operation and superior weld quality.
High Efficiency & Power Factor: ≥90% efficiency and ≥0.95 power factor ensure energy savings and consistent output.
Ergonomic Design: Equipped with a fender panel for gas cylinder mounting, protective cover, and premium welding gun with custom holder.
Precision & Low Deformation: Double-pulse control minimizes heat input, spatter, and deformation — ideal for automotive bodywork and thin materials.
Technical Specifications:
Parameter Specification
Input Voltage 380V / 220V
Rated Input Power 8 KVA
Rated Input Current 12 A
Output Current Range 35A / 15.7V – 260A / 26V
Duty Cycle 200A @ 100% / 260A @ 65%
No-Load Voltage 50 V
Efficiency ≥90%
Power Factor ≥0.95
Insulation Grade F
Wire Diameter (Steel) Ø0.6 – 1.2 mm
Wire Diameter (Aluminium) Ø0.8 – 1.2 mm
Wire Diameter (Copper Alloy) Ø0.6 – 1.2 mm
Wire Feeder Four-Roll Drive
Dimensions (L×W×H) 93 × 35 × 83 cm
Weight 88 kg
