Auto water drain value for Compressor
ر.ع.10.00

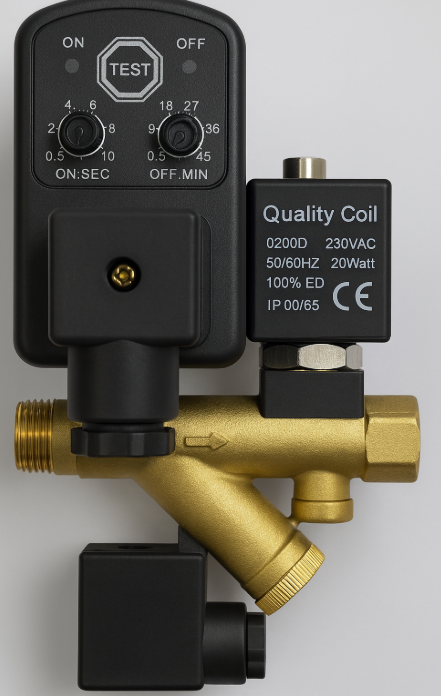

Compressor Auto Drain Valve with Timer Control
An auto drain valve is a vital component used in air compressor systems to automatically discharge condensate (water, oil, and debris) from air tanks, filters, and dryers. This helps prevent corrosion, maintains efficiency, and reduces maintenance costs.
Key Features:
-
Timer-Controlled Solenoid Valve:
-
Equipped with a programmable timer.
-
ON time (in seconds): Adjustable from 0.5 to 10 seconds.
-
OFF time (in minutes): Adjustable from 0.5 to 45 minutes.
-
Ensures precise control of drain intervals based on system needs.
-
-
TEST Button:
-
Manual override to instantly activate the drain cycle for testing or immediate drainage.
-
-
Solenoid Coil Specifications:
-
Model: 0200D
-
Voltage: 230V AC
-
Frequency: 50/60 Hz
-
Power: 20 Watts
-
IP Rating: IP 00/65 (dust-tight and water-jet resistant)
-
100% duty cycle (can operate continuously without overheating)
-
In stock
Compressor Auto Drain Valve with Timer Control
An auto drain valve is a vital component used in air compressor systems to automatically discharge condensate (water, oil, and debris) from air tanks, filters, and dryers. This helps prevent corrosion, maintains efficiency, and reduces maintenance costs.
Key Features:
-
Timer-Controlled Solenoid Valve:
-
Equipped with a programmable timer.
-
ON time (in seconds): Adjustable from 0.5 to 10 seconds.
-
OFF time (in minutes): Adjustable from 0.5 to 45 minutes.
-
Ensures precise control of drain intervals based on system needs.
-
-
TEST Button:
-
Manual override to instantly activate the drain cycle for testing or immediate drainage.
-
-
Solenoid Coil Specifications:
-
Model: 0200D
-
Voltage: 230V AC
-
Frequency: 50/60 Hz
-
Power: 20 Watts
-
IP Rating: IP 00/65 (dust-tight and water-jet resistant)
-
100% duty cycle (can operate continuously without overheating)
-
