LAUNCH PFP-100 Programming Flash Power is a must tool for vehicle diagnosis. It can prevent failure and abnormal during the process of programming due to low voltage.

Features:

1. 5 Protection Modes: Reverse Protection, Short Circuit Protection, Low Voltage Protection, Overheat Protection, Overcharge Protection, Synchronous Rectification (220V only)

2. Charging Mode: The regular mode for battery that under normal condition

3. Exhibit Mode: Charging the battery continually in small current in showroom

4. Programming Mode: The programming voltage of 12-16V can be directly selected

5. Hidden Repair Mode: Auto repair if there is a minor issue of batter

pecification:

MaxiVideo MV500

Spark Plug Wire and Sensor Clip and Cable  are not included  in this vertion

Finding dead or malfunctioning coils and plugs can be hard work. The GTC505 makes ignition troubleshooting quick, easy, and painless. It’ll help you, and the people depending on you, get moving again!

The GTC505 is the product of 20 years of work (by GTC) on ignition diagnostics. This tool will tell you exactly what’s going on with any spark ignition system as soon as you put its sensor by your coil (or spark plug wire). Swapping coils and other components in and out until you figure out what’s wrong is slow, tedious, and wasteful. The GTC505 will take the guesswork out, so you can be confident that the problem will be solved on your first try.

Description

Who it’s For:

• Marine outboard mechanics
• Gasoline inboard mechanics
• Small engine repair shops doing fault diagnostics
• Motorcycle technicians doing diagnostics or aftermarket modification
• Automotive technicians looking for a GTC505 with all the extras

What it Does:

Quickly and easily detects engine RPM and spark parameters. Useful for checking for ignition system faults and misfires, or for tuning and aftermarket modifications.

How it Works:

1. Connect the appropriate sensor
2. Turn the unit on
3. Position the sensor near the ignition module or wire
4. Check the engine RPM, spark peak voltage, burn time, and dwell angle/ramp time. The digital view gives you a quick look at the average, and the chart view will show you any misfires.

Warranty & Support:

Covered by our standard 1-year warranty, and supported for much longer. Replacement parts and accessories are generally available for 10+ years.

MaxiVideo MV480

🔧 Key Features:

• Real-Time GPS Tracking: Monitor the exact location of your car anytime, anywhere.

• Route History Playback: Review past trips, stops, and travel routes for better insight.

• Speed Monitoring: Get alerts when the vehicle exceeds the speed limit.

• Geo-Fencing Alerts: Set safe zones and get notified when your vehicle enters or exits these areas.

• Anti-Theft Protection: Instantly locate your car in case of theft or unauthorized movement.

• Mobile & Web Access: Control and view tracking data through your smartphone or computer.

• Engine Cut-off (Optional): Remotely disable the engine in emergency situations.

• Multi-Vehicle Management: Ideal for fleet owners needing oversight over multiple vehicles.

✅ Benefits:

• Enhanced vehicle security

• Reduced operational costs for fleets

• Better driver accountability

• Peace of mind for families and business ownersprice  65 OMR  inlude installtion iside car engin or dash + simcar + 1 year sim data

Who it’s For:

• Small engine mechanics
• Vintage motorcycle mechanics

What it Does:

Shows you engine RPM and spark plug peak voltage quickly and easily.

How it Works:

1. Turn the unit on
2. Position the sensor near the spark plug wire wire
3. Read the engine RPM and spark plug peak voltage

Warranty & Support:

Covered by our standard 1-year warranty, and supported for much longer. Replacement parts and accessories are generally available for 10+ years.

Description

The TA100’s unique and proprietary technology allows the user to perform quick and reliable diagnostics of non-starts, misfires, fouled up or damaged spark plugs and/or spark plug wires, by comparing digital read-outs of the spark plug voltage between cylinders on engines using conventional distributor/ignition coil, DIS (Distributor-less) or waste spark and magneto technologies.

Simple to use, the TA100 requires no special adapters, cables or a scope and is equipped with a large digital display that shows spark plug voltage, RPM, as well as Min/Max readings in real time.

Applications

• Chainsaws
• Lawnmowers
• Snowmobiles
• Skidoos
• Small gasoline and natural gas-powered generators
• Older motorcycles
• Older-model automobiles
• Older-model gasoline-powered trucks
• High performance racing cars
• Any engine equipped with spark plug ignition systems

Specifications

• Display: Large 4-1/2 Digits LCD + 2 x 3-1/2 Digits secondary displays (for Maximum, Minimum and other functions)
• Tachometer Range: 200 to 19999 RPM
• # of Cylinders: 1,2,3,4,5,6,8,10 and 12
• Cycles: 2 and 4 Cycles, and DIS
• Accuracy: ± 0.1% + 1 LSB
• Response time: 0.5 Seconds
• Ignition peak voltage range: 0 to 49.9 KVolt
• Antenna: Flexible with swivel capacitive sensor pick up
• Secondary ignition pick up: Capacitive sensor
• Spark Ignition System: Distributor, Magneto and D.I.S.
• Power Source: One standard 9 Volt alkaline battery type NEDA 1604 IEC 6F 22
• Battery life: Approx. 25 hours of operation
• Power Saving: Auto power off after approximately 1 min. of inactivity
• Physical dimensions : 6″ (H) x 4″ (W)x 1.5″ (D) (158 x 100 X 37 mm) – including holster but excluding antenna
• Weight: Approximately 11.8 Oz ( 335 g) Including battery
• Maximum spark plug wire voltage (Through capacitive pickup only): 49.9 KVolt

جهاز TA100 Smartach+ اللاسلكي لتحليل الإشعال وقياس عدد دورات المحرك

يُعد TA100 Smartach+ أداة متقدمة توفر تشخيصًا دقيقًا وكفاءة عالية لأنظمة الإشعال وقياس عدد دورات المحرك (RPM). يتميز بتقنية العمل اللاسلكي التي توفر مرونة وسهولة في الاستخدام، مما يجعله أداة أساسية للمحترفين في مجال السيارات.

المميزات الرئيسية:

1. تشغيل لاسلكي:

   • مزود بمستشعر لاسلكي يتيح التشغيل السهل والآمن حول المحركات دون الحاجة إلى توصيلات مباشرة.

2. قياس دقيق لـ RPM:

   • يقيس عدد دورات المحرك بدقة عالية للمحركات ثنائية الأشواط ورباعية الأشواط، مع دعم يصل إلى 12 أسطوانة.

3. تحليل شامل لنظام الإشعال:

   • يوفر قراءات مفصلة لأنماط الشرارة ودورات الإشعال.
   • مثالي لاكتشاف الأعطال مثل التوقف المفاجئ أو عدم انتظام الإشعال.

4. واجهة استخدام سهلة:

   • مزود بشاشة رقمية واضحة لعرض البيانات في الوقت الفعلي، بما في ذلك عدد دورات المحرك وقراءات لكل أسطوانة.
   • أزرار بسيطة لاختيار دورات المحرك، تكوين الأسطوانات، ووظائف أخرى.

5. تصميم متين ومحمول:

   • يتميز بغلاف قوي ومريح لتحمل ظروف ورش العمل.
   • خفيف الوزن وسهل الحمل، مما يجعله مناسبًا للاستخدام في الميدان أو الورش.

6. تطبيقات مرنة:

   • متوافق مع مجموعة واسعة من المحركات، بما في ذلك محركات البنزين والمحركات الصغيرة المستخدمة في السيارات والدراجات النارية والمركبات البحرية والمعدات الكهربائية.

الاستخدامات:

• تشخيص مشاكل توقيت الإشعال.
• قياس ومراقبة عدد دورات المحرك أثناء ضبط المحرك أو صيانته.
• اختبار أنظمة الإشعال في المركبات والمعدات التي تستخدم أنظمة موزع أو كويل الإشعال.

الفوائد:

• كفاءة محسّنة: يوفر الوقت من خلال التشغيل اللاسلكي والقراءات السريعة والدقيقة.
• السلامة: يقلل الحاجة إلى العمل بالقرب من الأجزاء المتحركة في المحرك.
• تعدد الاستخدامات: يدعم مجموعة متنوعة من أنواع المحركات وتكويناتها.
• سهولة الاستخدام: تصميمه البسيط يتيح استخدامه من قبل المحترفين وهواة السيارات على حد سواء.

يُعد TA100 Smartach+ الأداة المثالية للورش والفنيين الذين يحتاجون إلى الدقة والسرعة والراحة في تشخيص أنظمة الإشعال وقياس أداء المحركات.

إذا كنت بحاجة إلى المزيد من التفاصيل أو المواصفات الفنية، لا تتردد في التواصل!

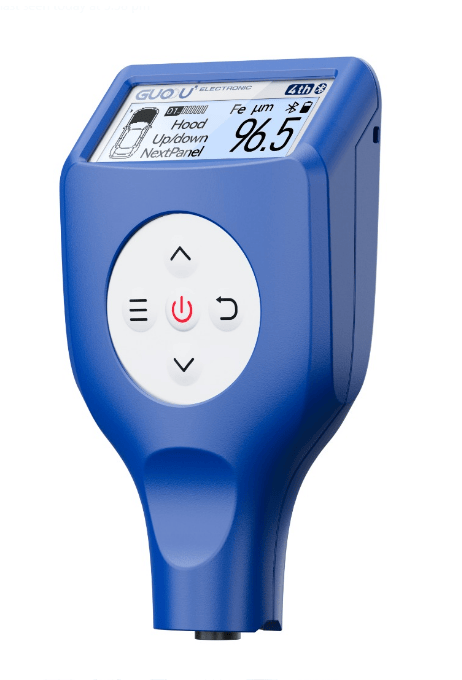

pating Thickness Gauge GC8102 was developed for a
broad spectrum of use in the automobile and painting
industries. This compact gauge allows for extremely
accurate measurements of paint and corrosion protection
thicknesses, both on steel and iron as well as on nonferrous metals such as aluminum, zinc or copper.
High measuring accuracy over the entire measuring range.
One-hand operation, use directly.
Easy, safe and fast measurements..

Measure mode : CarHandy ,CarPro ,2 mode selectable.
Memory: 999 cars datas can stock .
Unit: Metric/Imperial switchable (mil/um selectable)
Backlight: Brightness adjustable, clear and easy reading under any light Condition
Alarm : Set higher and lower alarm range for measuring
Calibration : Zero-Calibration, 1 points calibration and 5-point calibration
Detect : Metal Putty detect ,Zn detect
Battery: Low battery indication and auto shut off
Data transfer: USB/Bluetooth.
APP: Android App , iOS App
Language : English (other language can customized )
Data Delete: Delete a single data or clear all the data
Probe select :Automatically detects ferrous and non-ferrous substrates

Specification

Range: 0-3000μm/0-120 mil
Resolution: 0.1μm（0~99.9μm）；1μm（100~3000μm）
Accuracy: ±(1+2%H μm),H:coating thickness
Display: Easy to read LCD screen
Test Limits: Surface curvature: convex 5 mm / concave 5 mm
Minimum test surface: Φ10mm
Minimum thickness of base material: 0.4mm
Operation Condition(not in high magnetic field):
Temperature:-20°c-50°c Humidity: 10%RH-85RH
