Atlas Copco XATS 1200 Portable Diesel Air Compressor
نقاط البيع السريعة (Short description)
-
34.6/31.2 m³/min عند 8.6/10.3 bar
-
محرك Cummins QSL8.9-C360 بقدرة 264 kW
-
خزان ديزل 420 لتر لتشغيل طويل
-
تكوينين: مقطورة (5000 كجم) أو صندوق (4551 كجم)
-
مثالي للحفر، القطع/النفث، اختبار خطوط الأنابيب والصيانة الصناعية
المواصفات (للصفحة)
-
الضغط/التدفق: 8.6/10.3 bar — 34.6/31.2 m³/min
-
مرحلة الانضغاط: 1
-
سعة زيت السكرو: 95 L
-
سعة خزان الديزل: 420 L
-
مخارج الهواء: 1 × 2½″ و 1 × ¾″
-
المحرك: Cummins QSL8.9-C360 (264 kW)
-
السرعة تحت الحمل: 1900/1700 rpm | سرعة اللا حمل: 1200 rpm
-
زيت المحرك: 21 L | سائل التبريد: 58 L
-
الأبعاد (مقطورة): 4252 × 2140 × 2482 mm | الوزن: 5000 kg
-
الأبعاد (صندوق): 3666 × 2140 × 2225 mm | الوزن: 4551 kg
10T 4post lift (by order Only )
Liftcapacity: 10T,
lift high: 1.7 meters,
VoltagePower: 380V/220V 2.2 KW
column long: 6800mm
Total long:7600mm
out wide: 3810mm
pass wide：3300mm
hieght：2410mm
Secondary lift:No
1: mainly used for passenger cars and vans, trucks, maintenance
2 chassis maintenance.
This product mainly consists of posts, lifting beam,tray,transmission beam, chain safety device,oil cylinder,hydraulic pump station,etc.To raise the lifter, just press motor button. To lower down the main unit, toggle down the handle of the manual directional control valve at the pump station to unload oil cylinder and lower down the tray
SHL-4-440D Four Post Lift for Wheel Alignment 4.5 ton (رافعة المركبات )
Specification:
Product Features:
◆Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the excellent finish and concentricity
◆Japanese oil sealing elements, overload protection, international brand oil pipe
◆Electric hydraulic operation, with steel cable wire, stable operations
◆Shot blasting and high temperature baking powder coated surface finish

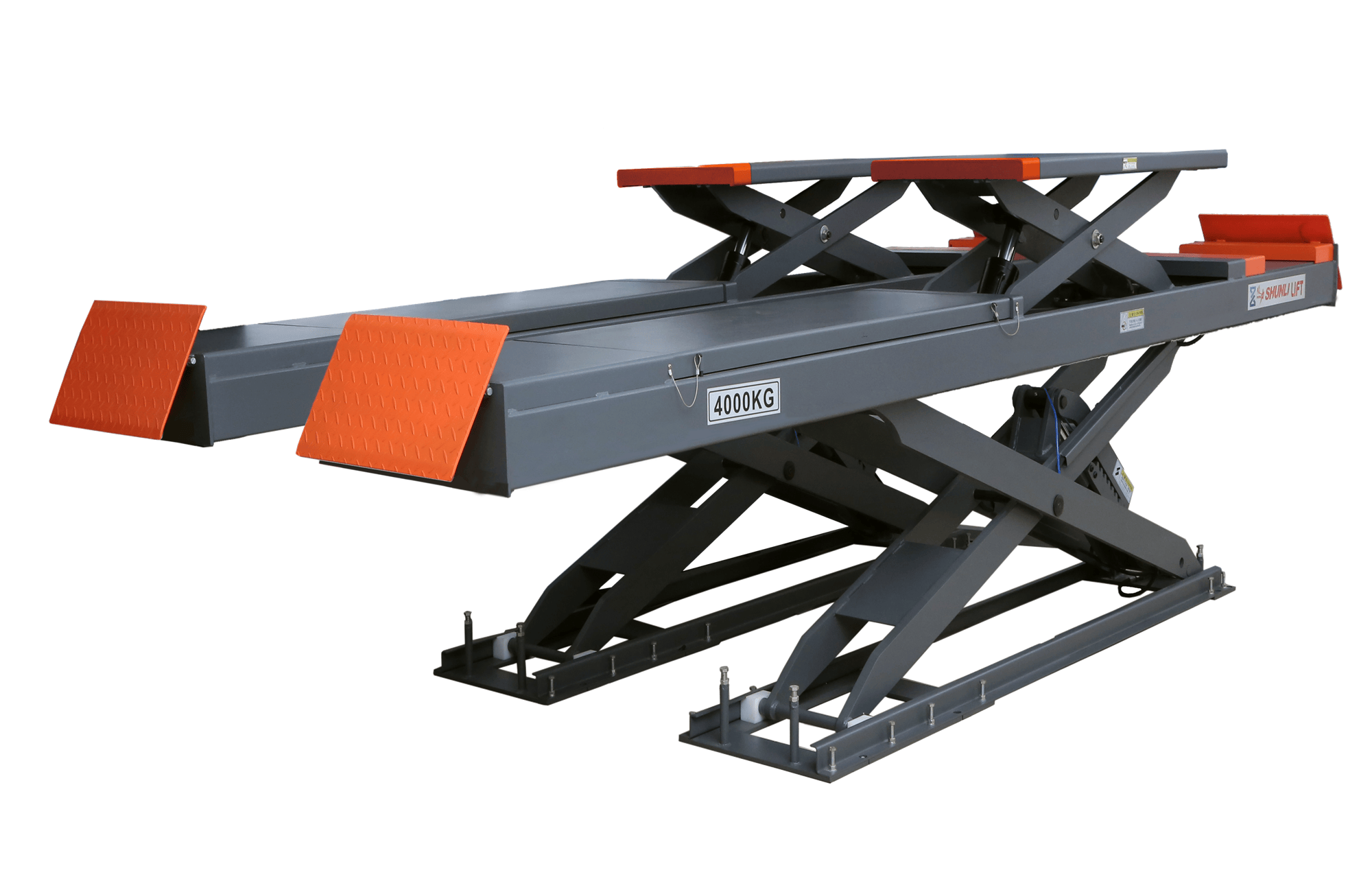

Ultrathin Small Platform Scissor Lift(Heavy Duty Type) 4 T(رافعة المركبات )
Product Features:
● Double level scissor lift,105mm above the ground at the lowest level
● Adopt Italy technology to design
● Double hydraulic balance system and mechanical safety with automatic unlock are equipped
● 24V safety control circuit
● Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the excellent finish and concentricity
● Japanese oil sealing elements, Italian spherical valve, oil pipe explosion protective device, overload protection, international brand oil pipe
● Components are made by laser cutting machine or other CNC equipment
● Alloy solid steel X structure, good rust resistance and not easy to deformation
● Ramp as extension suitable for different length of chasis（30CBL）.
● Shot blasting and high temperature baking powder coated surface finish
● Wear-resisting bearings
● Optional infra-red electronic leveling sensor, optional anti presser foot device
4.5 ton 2 post car lift with OUT Top Sensor (رافعة المركبات )
Description
2 post flour plate 4 click here to download file in pdf
4000kgs hydraulic two post lift with manul release
CE Post Lift Specification
1.Driven by double hydraulic cylinders, steel wire chain-type elevating system
2.Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the excellent finish and concentration.
3. Automatic arm restraints, lifting arm automatically engages when lift is raised, and disengaged when lift lowered to the ground.
4.Single side safety control, arm locks with tooth type ratchet, mufti-safety device, more reliable.
5. 3-stage Screw-up pads suitable for low chassis vehicle as well as SUVs, makes easy and quick service.
6.Door opening protection rubber as standard.
7.The overall design is suitable for tire tear open outfit, chassis maintenance, oil changes and maintenance, engineering vehicles such as regular vehicle maintenance; (suitable for conventional garage and service station to purchase)
8. Optional imported pumping device, optional 3 -stage lower telescopic arm.
9. Pass CE 6000KG static test, 4.6Tdynamic test.
Post Lift Details:
Post Lift Details:
| Model | SHL-2-240W |
| Lift Capacity | 4000KG |
| Lifting height | 1835mm |
| Min. Height | 85mm |
| Lifting Time | 50s |
| Drop time(appro.) | 30s |
| Power of motor | 2.2KW |
| Power supply | 220V/380V |
| Inner Width | 2860mm |
| Total Width | 3420mm |
| Overall height | 2820mm |
