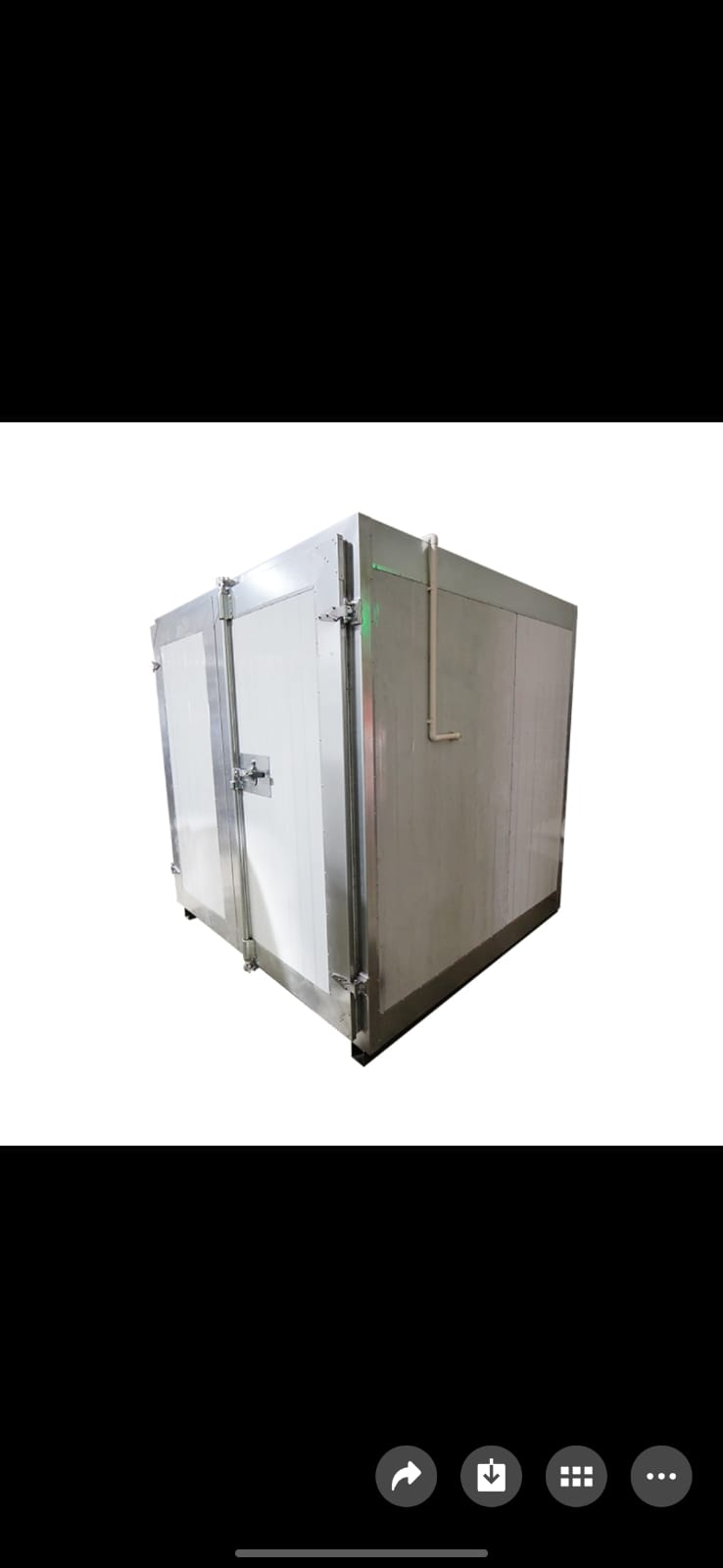

powedercoating oven custom size electrical

name Quantity/unit

Specification introduce
External dimensions mm 7000×5100×3200mm **
Internal dimensions mm 6900×3900×2450mm Subject to internal dimensions
door size 3 fans 3000*2400mm Three-folding sheet metal door, with glass
observation window, aluminum alloy latch
side door size 1 650*1800mm With explosion-proof pressure lock, door

handle, aluminum alloy edge

wall panel 1 set Thickness 50mm 50mm EPS board, density 8kg/m³, single-layer
thickness of outsourcing steel plate 0.326mm,
950mm wide. color: White

Hydrostatic layer
top bracket

1 set For total size 3.9m*6.9m 40*60 electro-galvanized square tube

Static pressure layer
filter cotton support

4 2860*1575*25mm spray, white

bottom bracket 1 40*40mm angle iron plus convex

steel

40*40mm angle iron plus convex steel, the
height is 280mm

Bottom plate
(painted)

Steel grating 2 lanes 30*4mm, 3
lanes 30*3mm steel grating

There are 5 grid plates, 2 channels are 53cm
wide and 3 channels are 90cm wide.

Blower (energy-
saving type)

1 set 1.5KW (380V/50Hz, three-phase) Top-mounted high-efficiency energy-saving

fan

induced draft fan 1 set 5.5KW (380V/50Hz, three-phase) Double inlet centrifugal fan
Deluxe Infrared
Roast Lamp

8 groups 3 per group, 24 in total There are 3 heating tubes in each light box,
each 1KW, and the heating tubes are
protected by a mesh to avoid burns by
operators

box 1 set Exhaust box Galvanized sheet bending package, 40*40

square tube frame

dome light 8 groups Each group of 3 lamps, each
lamp is 16W (T5 integrated LED
lamp)

Inclined ceiling light with transparent glass
cover (easy to dismantle);

Electric control box 1 380V/50Hz, three-phase power Delixi's main electrical appliances, with
leakage protection, temperature setting,
painting, baking paint, lighting, power switch,
emergency stop, etc.

filter sponge 1 set Three-dimensional spray top
cotton, initial effect tuyere
cotton

board 1 set 1500mm*530mm Two train boarding boards
