Screw Air Compressor + Dryer+600 Ltr Tank + prefilters
※ Use high efficient (energy efficiency level II) special motor for compressors as power system, longer service life and more efficient.
※ Reasonable configurations for different power ranges, meet different air supply requirements.
※ High-end configuration of oil-gas separator, lower oil content and more convenient to maintain.
Technical Data
|
Air Flow/Pressure
Power Noise Outlet Diameter Dimensions Input Voltage Air Tank Weight |
1.7/0.7 (m^3/min/MPa) 1.6/0.8 0.95/1.0 0.8/1.2 11 (kW) 66 (dB) G3/4 (inch) 1130/800/1250 (mm) 3-380/50 (V/Hz) 0.6 (m^3) 405 (kg) |

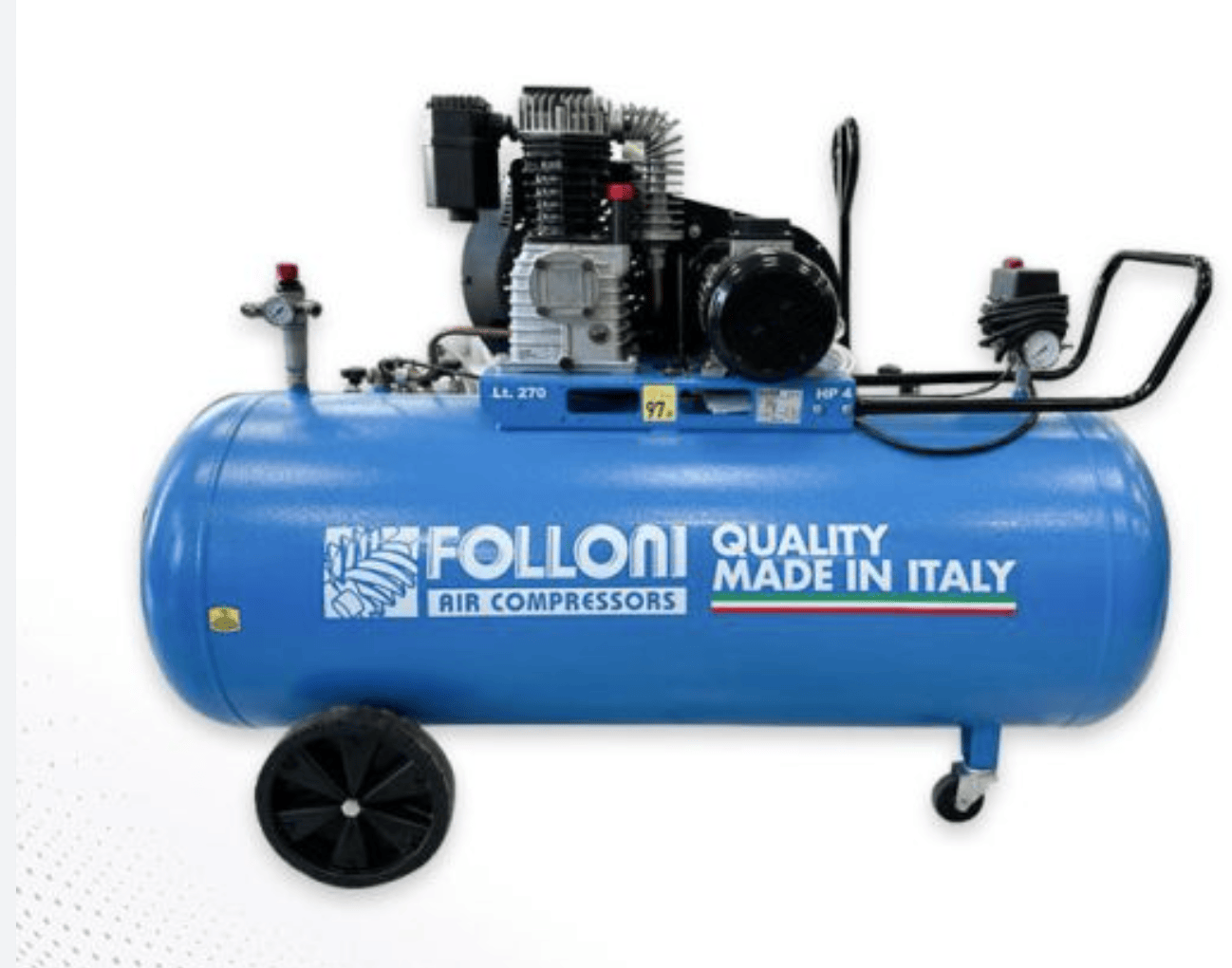

270 LTR Air Compressor 3 HP
| Feature | Specification | Description |
| Air Displacement | 390 L/Min (13.8 CFM) | The volume of air the pump can move. |
| Max Pressure | 10 Bar (145 PSI) | The maximum pressure the tank can hold. |
| Tank Capacity | 270 Liters | Large storage capacity, ideal for tools with high air demand. |
| Motor Power | 2.2 kW (3.0 HP) | The strength of the electric motor driving the pump. |
| Electrical Requirement | 230V AC / 50Hz | Standard single-phase power (common in Europe/UK). |
| Rotation Speed | 1100 RPM | Indicates a low-speed pump, which usually means less heat and longer life. |
| Weight | 103 kg | This is a heavy, stationary or semi-portable unit. |
